장비[QIAGEN] 최대 192개 샘플에서 핵산 추출_QIAsprint Connect

QIAGEN
조회수 197

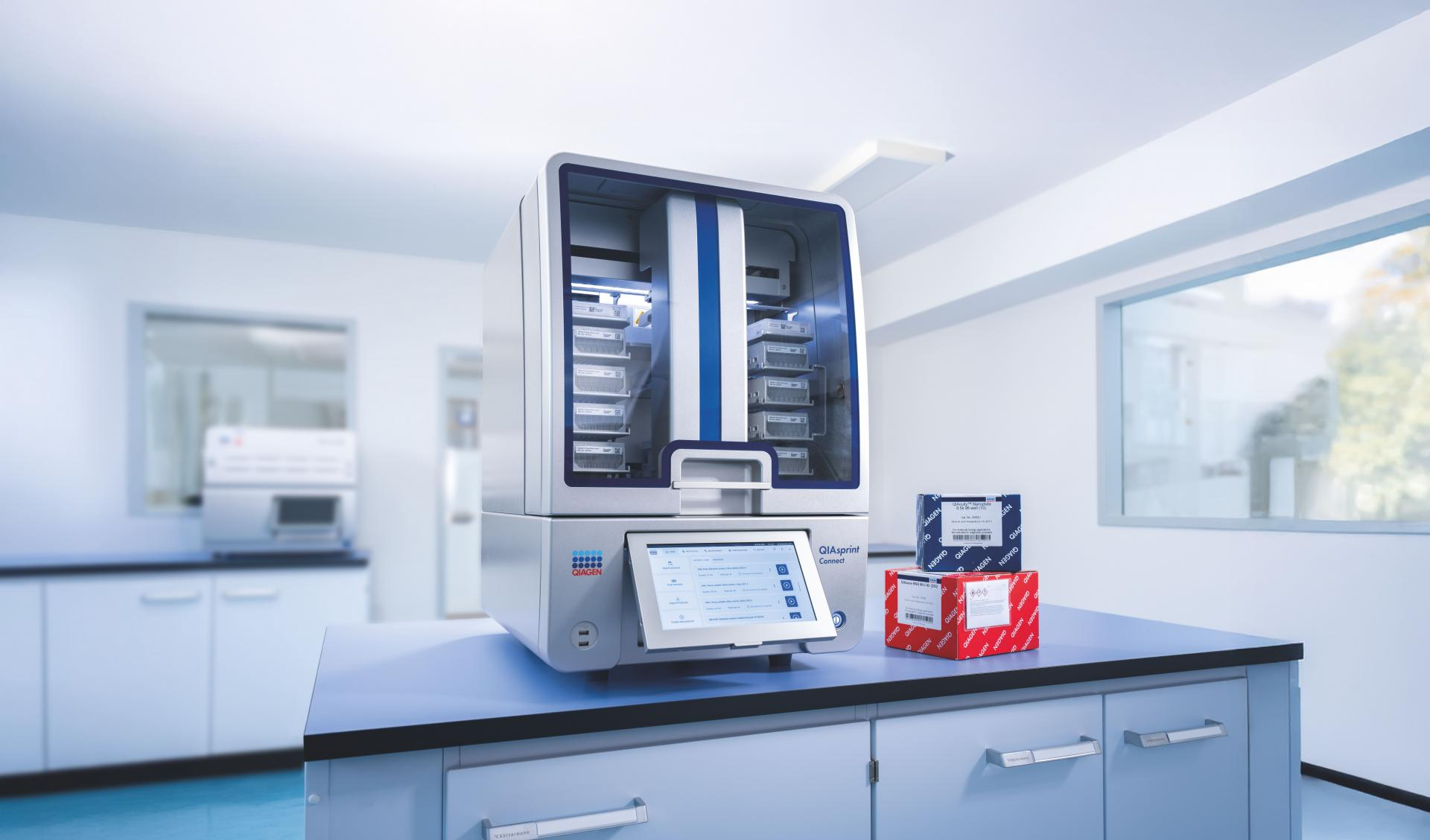

QIAsprint Connect
High-throughput 자동 핵산 추출 장비



최대 192개 샘플에서 magnetic bead 기반 기술을 이용해 핵산 추출 가능!


  • 최대 192개 샘플(2×96 well)을 한 번에 실험 가능!
  • 실리카 멤브레인 기반으로 핵산을 추출하여 재현성과 안정적인 결과 제공!
  • DNA 및 RNA 추출을 위한 전용 Kit 사용 가능!
  • 터치 기반 직관적인 사용으로 간편한 프로토콜 설정 가능!
  • Hands-on 시간을 최소화하고 실험실 효율 극대화
  • 소모품 구조 최적화를 통해 플라스틱 사용량 및 폐기물 감소를 고려한 설계

■ 주요 특징

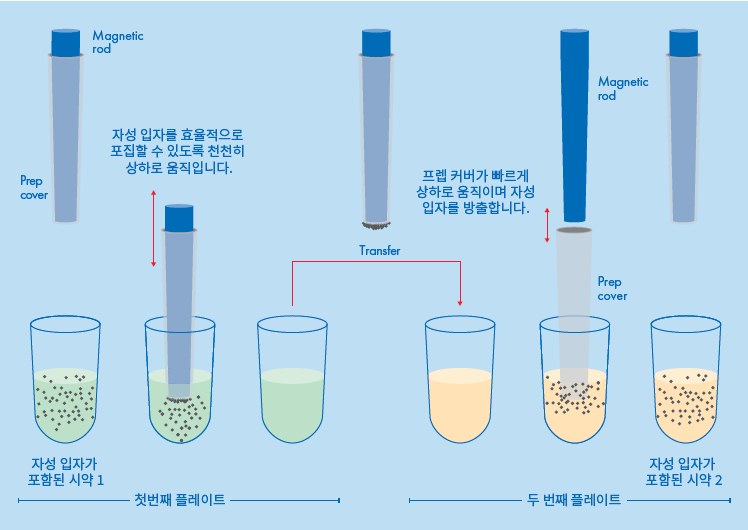

■ 작용 원리
  • QIAsprint Connect의 기술적 핵심은 Magnetic Particle 기술
  • Magnetic Particle을 직접 이동시키는 방식으로 Binding, Washing, Elution을 자동화
  • 실험 오차(Variability)와 소모품 사용량을 최소화하는 동시에, 재현성 높은 일관된 결과를 보장

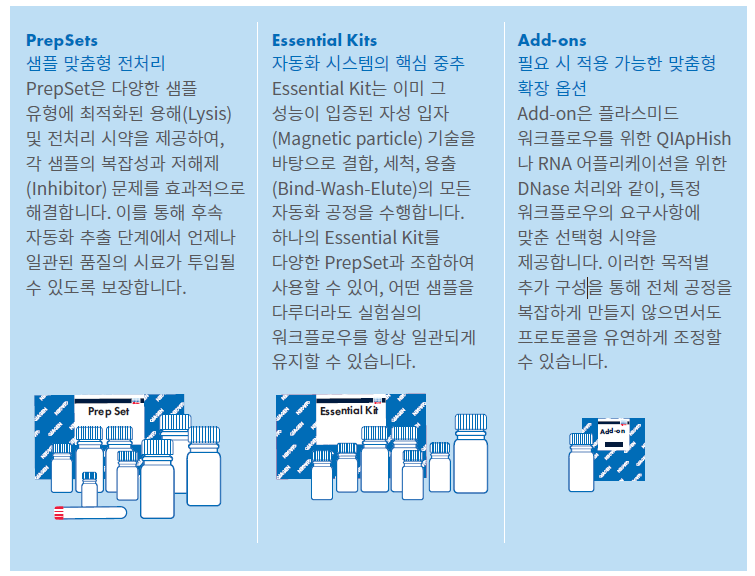

■ QIAsprint의 전용 시약
  • QIAsprint Connect는 샘플별 전용 PrepSet, 자동화된 결합-세척-용출 단계를 위한 공용 Essential Kit, 그리고 목적별 최적화를 위한 선택형 Add-on을 결합한 모듈형 키트 시스템으로 구성
  • 핵심 자동화 워크플로우를 일관되고 효율적으로 유지하면서도, 어플리케이션에 따라 시약을 자유롭게 조합(Mix and match)하여 사용 가능

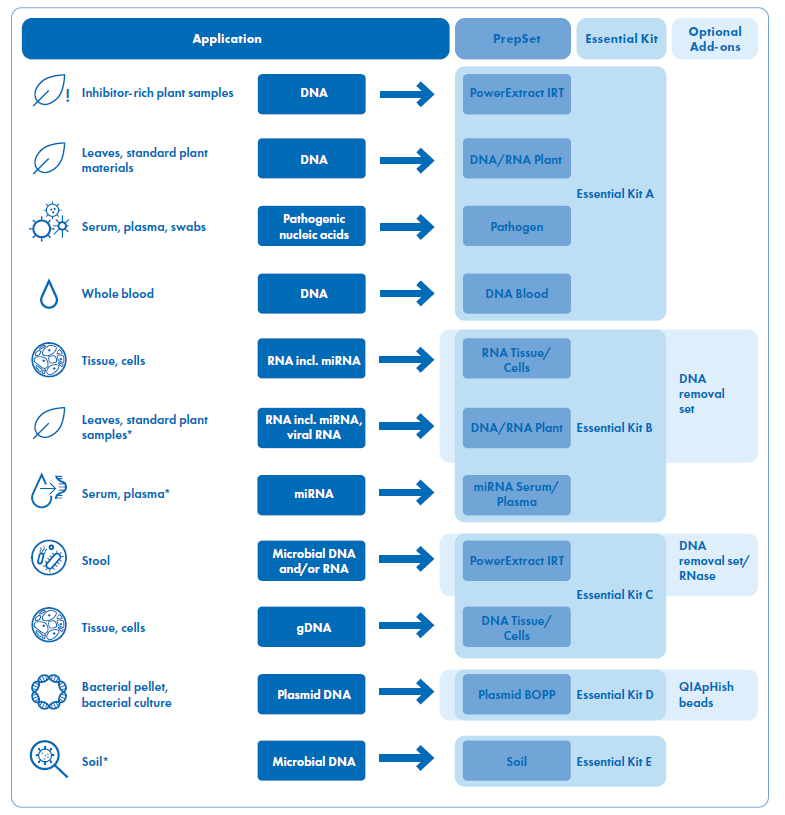

■ 샘플별 Kit 조합 방법



Ordering Information_instruments

CategoryProductDescriptionCat No.
InstrumentsQIAsprint ConnectBenchtop instrument for automated magnetic particle based nucleic acid purification from up to 2x96 samples in parallel using QIAsprint extraction chemistry; includes required instrument accessories, and 1-year warranty on parts and labor.
9001234
Consumables

QIAsprint Elution Plate  (10)

Set of 10 QIAsprint Elution Plates; for use with QIAsprint Connect
583204

QIAsprint Frame Shield (100)

Set of 100 QIAsprint Frame Shields; for use with QIAsprint Connect
580010

QIAsprint Prep Cover (8)

Set of 8 QIAsprint Prep Covers; for use with QIAsprint Connect
582103

QIAsprint Prep Plate Insert (32)

Set of 32 Prep Plate Inserts; for use with QIAsprint Connect
582226
Accessories

QIAsprint Prep Cover Frame (2)

Set of 2 QIAsprint Prep Cover Frames; for use with QIAsprint Connect
582111

QIAsprint Prep Plate Frame (2)

Set of 2 QIAsprint Prep Plate Frames; for use with QIAsprint Connect
582211


Ordering Information_reagents

CaterogyProductDescripitonCat No.
Prep Set
(Sample-specific pretreatment)

QIAsprint DNA/RNA Plant PrepSet (384)

Buffer RLT for 384 DNA/RNA preparations from plant samples
580669
QIAsprint DNA Blood PrepSet (384)
Buffer AL, Proteinase K, and Buffer RDW for 384 DNA preparations from blood samples
585459
QIAsprint Pathogen PrepSet (384)
Buffer ACL, Proteinase K, and Carrier RNA for 384 preparations of viral DNA,RNA and bacterial DNA extraction
585799
QIAsprint RNA Tissue/Cells PrepSet (384)
Buffer RLT, Proteinase K and RNase-free water for 384 RNA preparations from tissue or cell samples
586549
QIAsprint DNA Tissue/Cells PrepSet (384)
Buffer ATL, Buffer VXL, Buffer ACB, Proteinase K, and Reagent DX for 384 DNA preparations from tissue or cell samples
587449

QIAsprint PowerExtract IRT PrepSet (384)

Solution CD1, Solution CD2, Buffer MVL for 384 DNA and/or RNA preparations from inhibitor-rich samples
587679
QIAsprint Plasmid BOPP PrepSet (384) Buffer P1, P2 and P3, Buffer QBB, Buffer ETR2 and RNAse A
588909
Essential Kits
(Universal isolation reagents)		QIAsprint Essential Kit A (384)
384 preps for purification of nucleic acids: MagG Bead suspension, Buffer AW1, Buffer AW2 and RNase-free water
585009
QIAsprint Essential Kit B (384)
384 preps for purification of nucleic acids: MagG Bead suspension, Buffer RPE, RNase-free water
586009
QIAsprint Essential Kit C (384)
80 mL RNase-free water, 77 mL Buffer MW1, 12 mL MagAttract Bead suspension
587009
QIAsprint Essential Kit D (384)
384 preps for purification of nucleic acids: MagG bead suspension, Buffer PE, Buffer EB
588009
Standalone buffers
(Optional Add-ons)		QIAsprint DNA removal Set (384)
384 preps for gDNA removal: DNase (RNase-free), Buffer RDW, RNase-free water
586409
QIApHish Beads (17ml)
QIApHish Bead suspension
588900



*제품문의  T. 031-728-3239,  E. technical@dawinbiotech.com
